CARTRIDGE CLOSED WITH HOLE 13 MM (TD-STYLE) BLENDED 80/20 OD 324 MM X L 660 MM NO OUTER LINER

2626912-000-440

CARTRIDGE CLOSED WITH HOLE 13 MM (TD-STYLE) BLENDED 80/20 OD 324 MM X L 660 MM NO OUTER LINER

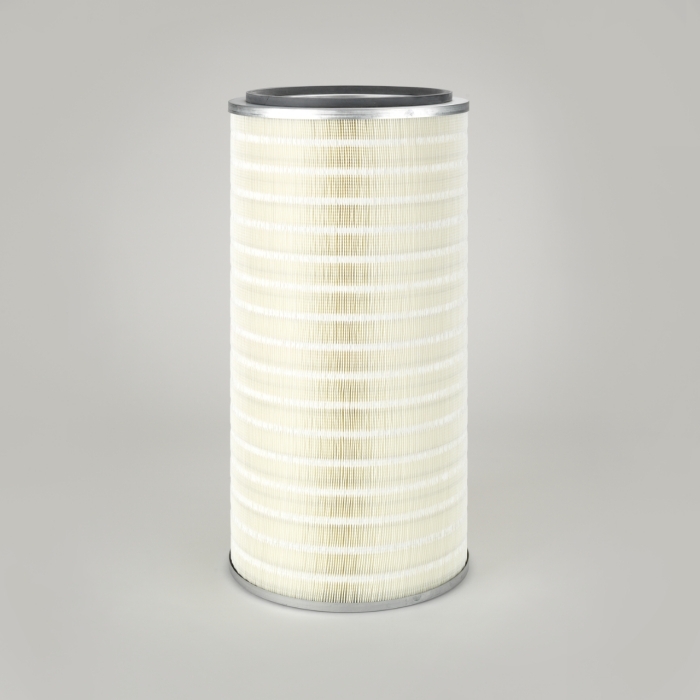

TD-style Cartridge Filter in Blended 80/20, 324 mm outer diameter x 660 mm long with open/closed (13.5mm bolt hole) end caps; Special feature: No outer liner for ECB, TD and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	660
Media	Blended 80/20
Area (m²)	21
Top End Cap Design	Open
Bottom End Cap Design	Closed with hole 13 mm
Earthed	No
Flame Retardant	No
Outer Liner	No
Max. Temp (°C)	65
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Volume (m³)	0.094608
Weight (kg)	6.21
